Products - Taper Pin with hole

Products

Inside threaded taper pins , harden steel material with zinc finish , right or left thread direction , partial hollow .

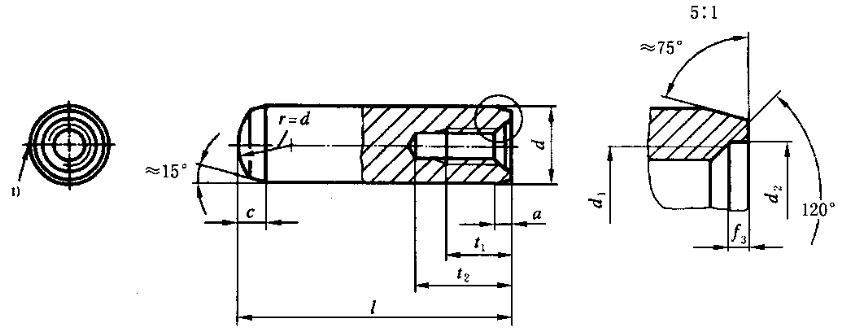

ISO 8735 or GB/T120.2-2000 Standard

d	6	8	10	12	16	20	25	30	40	50
a	0.8	1	1.2	1.6	2	2.5	3	4	5	6.3
c	2.1	2.6	3	3.8	4.6	6	6	7	8	10
d1	M4	M5	M6	M6	M8	M10	M16	M20	M20	M24
p	0.7	0.8	1.0	1.0	1.25	1.5	2	2.5	2.5	3
d2	4.3	5.3	6.4	6.4	8.4	10.5	17	21	21	25
t1	6	8	10	12	16	18	24	30	30	36
t2	10	12	16	20	25	28	35	40	40	50
t3	1	1.2	1.2	1.2	1.5	1.5	2	2	2.5	2.5

Unit : mm
