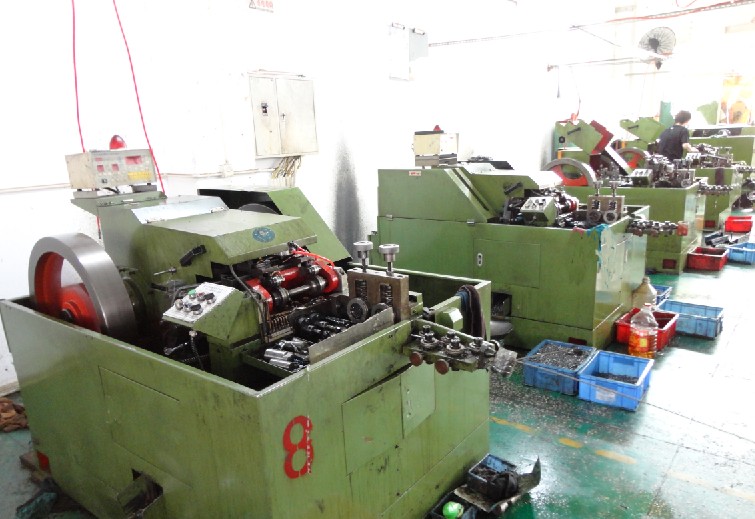

Production Lines
Technical Parameters For Automatic Lathe

 1.  Max Process size : Φ30mm X L 100m
 2.  Motor Power : 2.2 KW
 3.  Spindle Speed : 200- 2500 rd/min
 4.  Feeding Rate of X . Z axis : 10 – 12m / min
 5.  Controling Accuracy of X – Z axis : 0.03mm
 6.  Control System : Hydraulic
 7.  Hydraulic Oil : 35#
 8.  Style of Tool Carrier : Tool Borizonatal Structure
 9.  Rate Voltage : 380 V / 50HZ
10. Working Air Pressure : 0.7 – 1.0 mpa
11. Demension : L135 X W115 X H168 cm
12. Weight : 550 kgs

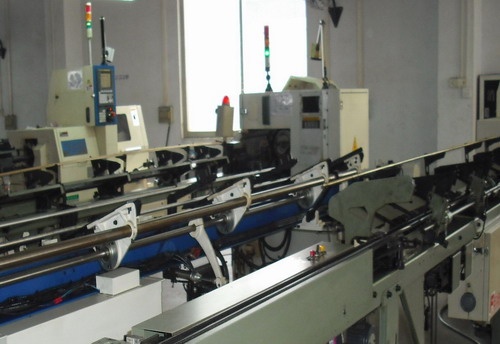

 Automatic Lathe Line

Manufacture

1. Shape for Square , Octagonal ,Hexagon , round , Punching and Blank material etc .
2. Process : OD , ID , Flat , Insider Chamfer , Outside Chamfer , Outside Lathe Slot , Inside Lathe Slot etc
3. Different metal and non-metal parts are available .







Technical Reference For Turning Machine

 1. Swing diameter for Bed : 1000mm
 2. Swing diameter for Knife : 610mm
 3. Spindle Diameter : 130mm
 4. Spindle Front Taper : M140
 5. Spindle Foreward Revolution : 21
 6. Spindle Reversion Revolution : 12
 7. Spindle Revoluation Scope : n(1) Forward 3.15 ~ 315 r/min
                                                    Reversion 3.5 ~ 278 r/min
                                               n(2) Forward  2 ~ 200 r/min
                                                    Reversion 2.24 ~ 178 r/min
 8. Vertical & Horizontal Feed Rate of Knife : 56
 9. Power Rate : 22 KW
 10. Max Load : 5000 Kg

   Turning Machine


                        CNC Processing

Technical data For CNC


Swing Diamter of Bed 400mm
Swing Diamter of Table 210mm
Row of Knife No. 4-5
Spindle Speed 100-300r/min
X axis stroke 300mm
Z axis stroke 600mm
Spindle Bore 60mm
Feeding Rate X 4000-8000mm/min
Z 6000-12000mm/min
Plus Equivalent X 0.0005mm
Z 0.001mm
Re-positioning Accuracy X 0.005mm
Z 0.01mm
Thread Cutting 0.25-50
Motor Power 7.5kw
Weight 1500 kgs
Dimention 1900X1100X1700 ( L X W X H )

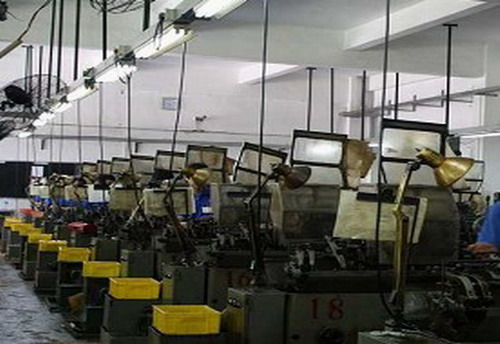

  Screw Workshop
