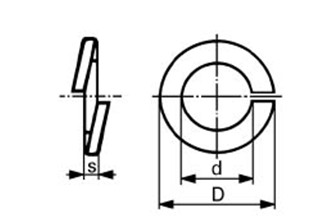

Spring washer also known as split washer , a split in the centre of ring , one end is up another end is down , which be used between pieces and stop pieces to move once finished installation , with high tensile and flexialbe performance to ensure assemblie more safty . plating can be designated that based on requirements for environment and using conditions .

Part No. |
d |
D |
S |
Material |
3.2 |
3.5 |
7.42 |
8 |
0.5 |
65Mn |
V1001SW |
4.3 |
4.6 |
8.42 |
9 |
0.5 |
65Mn |
V1002SW |
5.3 |
5.6 |
10.3 |
11 |
0.5 |
65Mn |
V1003SW |
6.4 |
6.76 |
11.3 |
12 |
0.5 |
65Mn |
V1004SW |
8.4 |
8.76 |
14.3 |
15 |
0.8 |
65Mn |
V1005SW |
10.5 |
10.93 |
20.16 |
21 |
1.0 |
65Mn |
V1006SW |
13 |
13.43 |
23.16 |
24 |
1.2 |
65Mn |
More data for spring washer , please go to Technology colum - Spring washer TDS |
