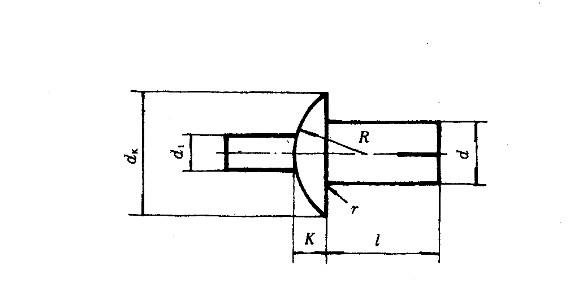

Rivet Standard and Specification
| Size | 3 | 4 | 5 | 6 | 6.4 | |
| d | max | 2.94 | 3.92 | 4.92 | 5.92 | 6.32 |
| min | 3.06 | 4.08 | 5.08 | 6.08 | 6.48 | |
| dk | max | 6.24 | 8.29 | 9.89 | 12.35 | 13.29 |
| min | 5.76 | 7.71 | 9.31 | 11.65 | 12.71 | |
| K | max | 1.4 | 1.7 | 2 | 2.4 | 3 |
| dl | Ref | 1.8 | 2.18 | 28 | 3.6 | 3.8 |
| R | approx. | 5 | 6.8 | 8.7 | 9.3 | 9.3 |
| r | max | 0.5 | 0.5 | 0.7 | 0.7 | 0.7 |
Mark : GB/T 15855.1-1995 Unit :mm
